FUJIFILM PRESSURE DISTRIBUTION MAPPING SOFTWARE (FPD-8010E)
OVERVIEW
Easy to Read, Easy to Understand
Prescale Pressure Analysis in numerical format is now available.
FPD-8010E provides a wide range of effective presentation and report functions utilizing FPD-8010E software and as scanner to digitize Prescale outputs to allow the user to produce multi-faceted measurement data such as pressure distribution and enlargement, cross-sectional distribution, and 3-D image display.
This serves to accelerate product development and improved yields based on detailed multi-faceted measurement data and analysis.
SYSTEM CONFIGURATION
Dedicated Software
Converts Prescale density values into pressure values
Dedicated Cover
This manuscript hold-down scanner cover improves date-read precision.

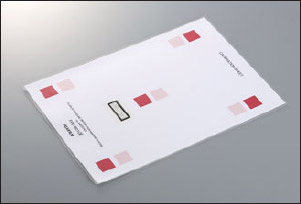

Calibration Sheet
The calibration sheet limits scanner-read errors to a fixed range.
HOW TO USE
Step 1
Prepare the colored Prescale
Step 2
Scan Prescale Samples (Scanner purchased seperatly by user)
Step 3
Perfom analysis utilizing FPD-8010E Software.
FUNCTIONS

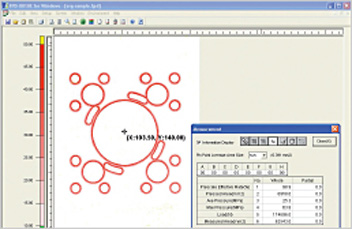

Overall Measurement
Various data such as average pressure and maximum pressure are displayed.

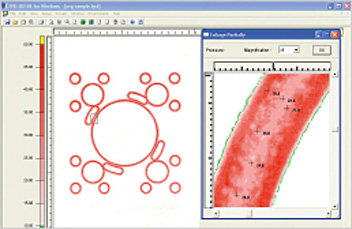

Partial Enlargement
The specified field is enlarged. (x4, x8, x16)

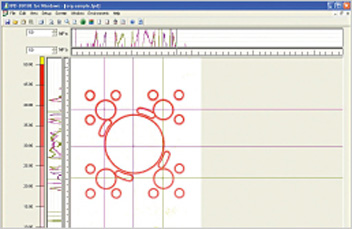

Pressure Cross Section
Pressure distribution on a line passing through a specified point is shown on a line graph.

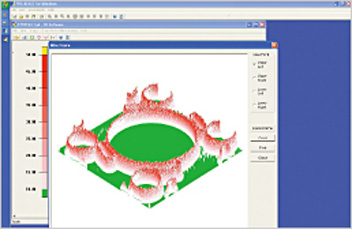

Wire Frame
Pressure is displayed in 3-D format.
Total Weight Distribution
The upper and left segments of the total pressure are displayed on a bar graph.
Text Data Output
Pressure data is exported to a text file.
Histogram Analysis
Pressure on the circumference is displayed as a histogram.
Pressure Distribution Animation
Step-by-step pressure values are displayed in animated format.
| SPECIFICATIONS | |
|---|---|
| Product Name | Fujifilm Pressure Distribution Mapping System for Prescale |
| Model | FPD-8010E |
| Main Functions | Prescale image input function. Pressure distribution display function/Pressure data output function. 3D display function/polar coordinate display function. |
| Scan Sizes | Single Read: 297mm x 210mm (11.7in x 41.3in) Maximum: 891mm x 1050mm (35.1in x 41.3in) |
| Resolution | 0.125 (200 DPI), 0.25 (100 DPI), 0.5, 1, 2mm sq. |
| Dedicated Cover Weight | 570g |
| Dedicated Cover Dimensions | 70(H) x 290(W) x 364(D)mm |
| Packed Items | Dedicated software, dedicated cover, calibration sheet, installation manual, software license |
| Scanner | Epson V100, V200, V350, V300, V330 and V33 |
| RECOMMENDED SOFTWARE ENVIRONMENT | |
|---|---|
| OS | Windows 2000, XP, Vista and 7(32/64bit) |
| CPU | Pentium® III 1GHz or Higher |
| Memory | 512MB or more |
| Display | XGA or better, 65,000 colors or more |
